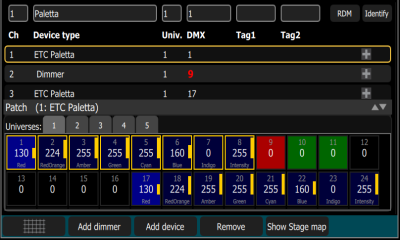

The DMX address chart is view-only and may not be edited. Scroll up and down to view all the addresses in the selected Universe.

• Each cell shows the DMX address, the value in the range 0-255 and the name of the parameter for a device patched with a personality. A yellow bar graph indicates the approximate value being output.
• Cells colored light blue indicate the base address of the item, which is the address entered in the Patch screen DMX box. The following dark blue cells show the following DMX addresses used by the device according to the size of its footprint.
• Cells colored light green indicate single dimmers. Cells colored dark green indicate independents.
• Cells colored red indicate a patching overlap, where more than one dimmer, device, or independent is patched to the same DMX address.
