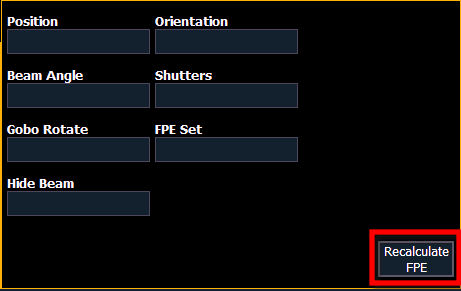

Press Realculate FPE , then Confirm FPE to commit your changes.
Once you have at least four FPE Points matched to Focus Palettes, you are ready to calculate FPE.
Press Realculate FPE , then Confirm FPE to commit your changes.

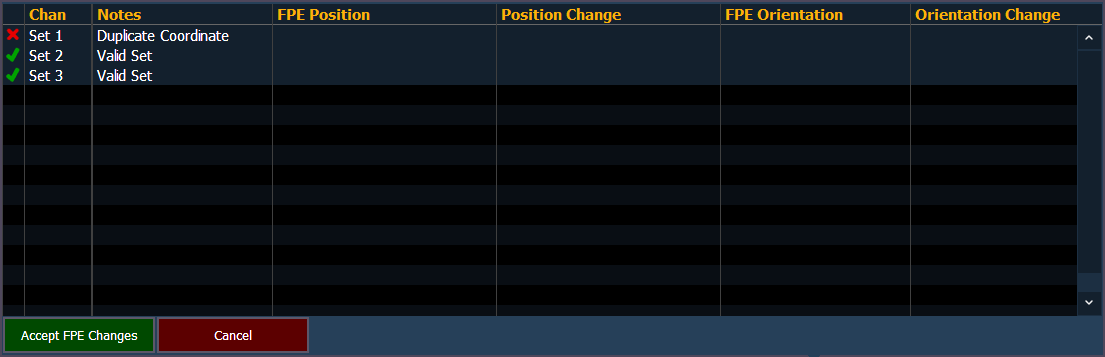

A window will appear summarizing any FPE changes and / or a table of errors.
Note: Any errors must be resolved before proceeding. It is not possible to undo an FPE calculation.
Press Accept FPE Changes to proceed.
If calculating FPE for the first time, this will automatically generate fixtures in your Augment3d model. You can also make subsequent FPE edits or recalculations the same way.
With nothing selected in the command line, FPE will recalculate positions for all patched fixtures in a show file. If specific fixtures or ranges of fixtures are selected, the FPE calculation will only affect the selection.
