Icons

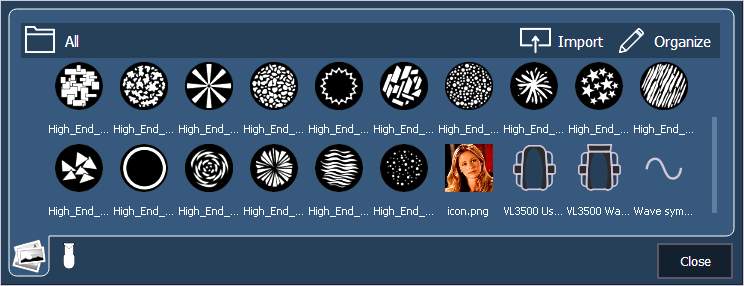

Icons are images that can be applied in various places throughout Eos to customize your workspace.

Any targets that can be applied to a direct select (other than channels, scenes, and buttons) can be assigned an icon, which can be configured to appear on the direct select button in Direct Selects (Tab 4) or Custom Direct Selects (Tab 39). See Custom Direct Selects and Configuring Direct Selects.

Icons can also be added and configured as magic sheet objects. See Magic Sheet Icon Library.

Importing Icons

Select the Import button to add new icons to the library. Use the pop-up menu to navigate to the appropriate folder, select one or more images, and select OK. SHIFT or CTRL can be held to select multiple consecutive or nonconsecutive images.

Accepted image formats for import are .bmp, .gif, .ico, .jpg, .pbm, .pgm, .png, .ppm, .svg, .svgz, .tga, .tiff, .xbm, and .xpm. The maximum image size is 1920 x 1920.

Organizing Icons

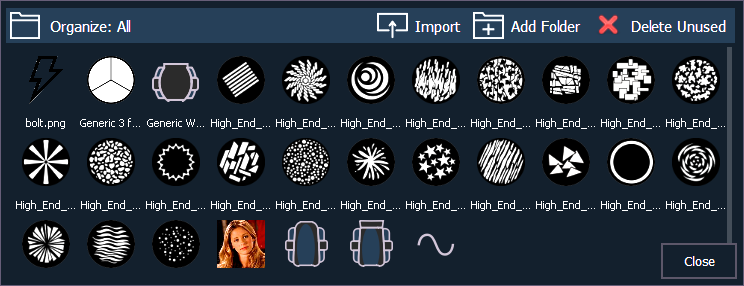

Select the Organize button to enable the following additional button options:

• Add Folder - adds a folder to the current icon library directory.
• Delete Unused - deletes any unused icon images across all icon library folders. You can optionally delete subfolders and empty folders at the same time using the checkboxes.

Icons can be dragged in and out of folders. Selecting an image or folder in organize mode will enable the following options:

• Replace - images only. Replaces all show file instances of the selected image with a new image of your choice.
• Rename - changes the name of the selected image or folder.
• Delete - after confirmation, removes the selected image or folder from the icon library. Deleting a folder will also delete all images inside it.

SVGs

Any SVG (Scalable Vector Graphic) file used as the icon for multiple targets can be given a unique color per instance. The files must be tagged using the same guidelines for Importing Fixture Symbols.
