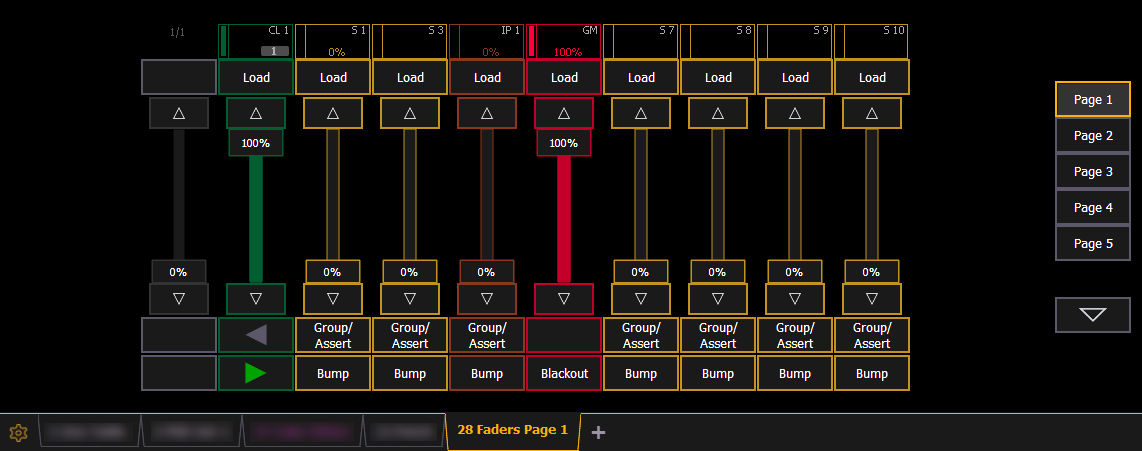

Virtual Fader Module

A virtual fader module can be opened from the home screen by selecting the Faders display button, or by pressing [Tab] [2][8].

The virtual fader module has a configuration menu, which is accessed by first selecting the module tab and then double clicking on the tab to open the menu. With the virtual fader module selected, you can also select the gear icon, which is located by the tabs, to open the configuration menu.

The following options are available in this configuration menu:

• Rows - sets the number of rows used for the module. Maximum number of rows is six.
• Columns - sets the number of columns used for the module. Maximum number of columns is six.
• Slider Format - choose between the following options:
  • Buttons - configurable buttons
  • Faders - sliders and configurable buttons
  • Apex Faders - Apex endless fader wheels, sliders, and configurable buttons
• Display Master Fader Pair - check this box to display the virtual master fader pair. Unchecked by default.

For information about configuring your faders, see Fader Configuration
