Project View

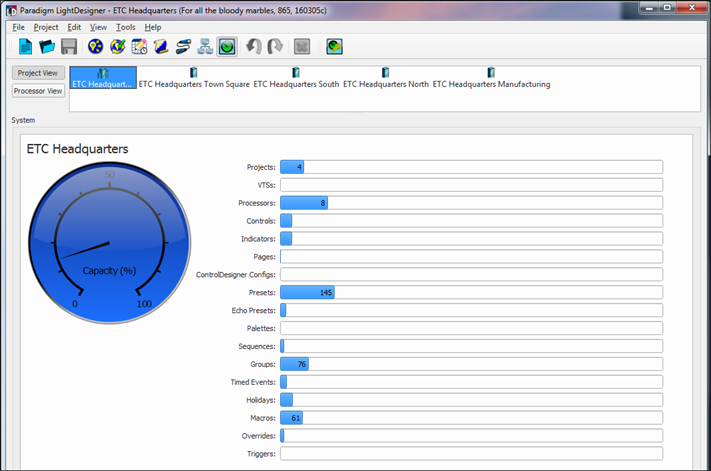

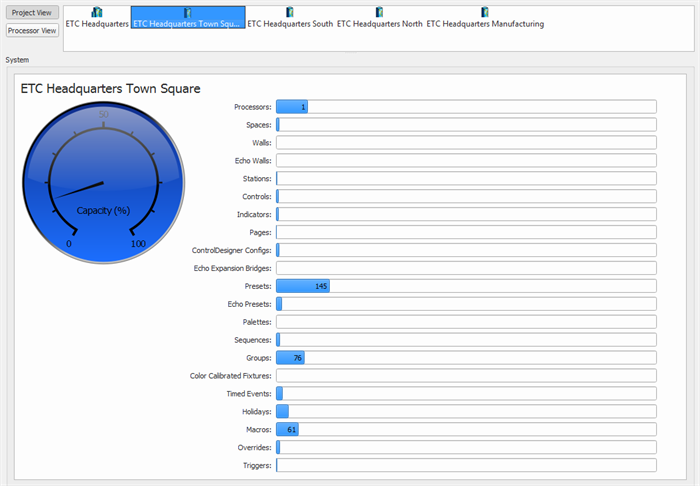

Selecting the [Project View] button displays a gauge and bar graph with estimated data for the filtered selection, meaning if the Server Project is the selection or if a sub-project is the selection. The gauge provides an overall estimation of the project level object and resource limitations against the capacity of a Paradigm project. Reference System Requirements and Capacitiesfor a list of the acceptable limitations of a project.

When the key objects and resources are within their own limitations and within the capacity of the project, the gauge displays in blue. As the objects and resources in the project are pushing their limits, the gauge and bar will display in red. Gauge and Bar Graph Overview for guidance on understanding the gauge and bar graph data displayed.
