Set BACnet I/O Objects Control Function

To set the control function for a BACnet input or output object, you can choose to:

• Right-click on any of these objects from the Browser and select "Set Control Function" from the context menu. The "Set Control Function" dialog displays for configuration.
• While the object is selected, use the Function drop downs from the Property Editor to configure the object actions.

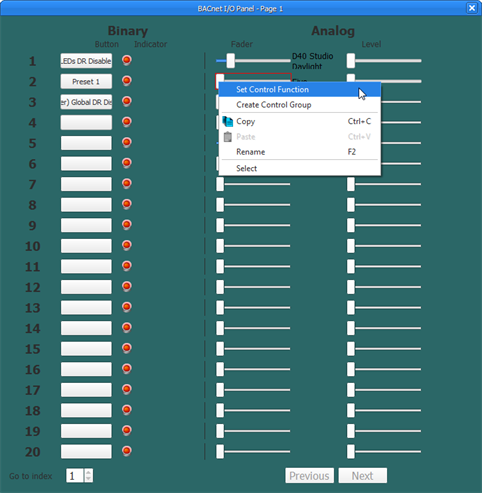

• While in the Program / Simulate view, double-click on an object in the Browser to display the BACnet I/O Panel in simulation. From the simulated panel, right-click on an object control, (button or fader) and select "Set Control Function" from the context menu. The Set Control Function Dialog displays for configuration.

  To configure a Level or Indicator object, press (Alt) and click to select the point, then use the Property Editor to configure the Function.

  Tip: You can select multiple similar objects at once by pressing and holding (Ctrl) and (Alt) while clicking to select the objects, although you cannot select two different object types in the same selection.
