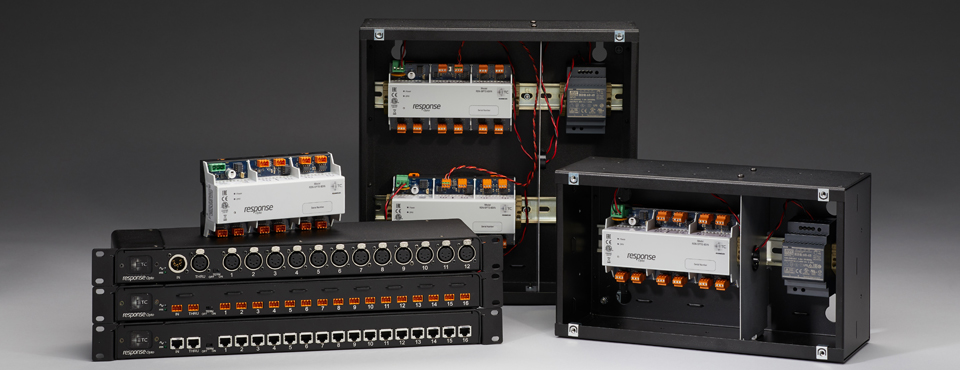

Response Opto-Splitters

Data distribution for systems, large or small

From small stage productions to large architectural installations, ETC provides the systems, expertise, and equipment for data distribution. ETC’s aim is to provide seamless service and integration for those systems backed by our core competencies and development expertise. Response Opto-Splitters provide DMX distribution with integrated RDM capability, giving our users a true, fully-integrated ETC system with data communication that meets all your needs.

Request a Demo

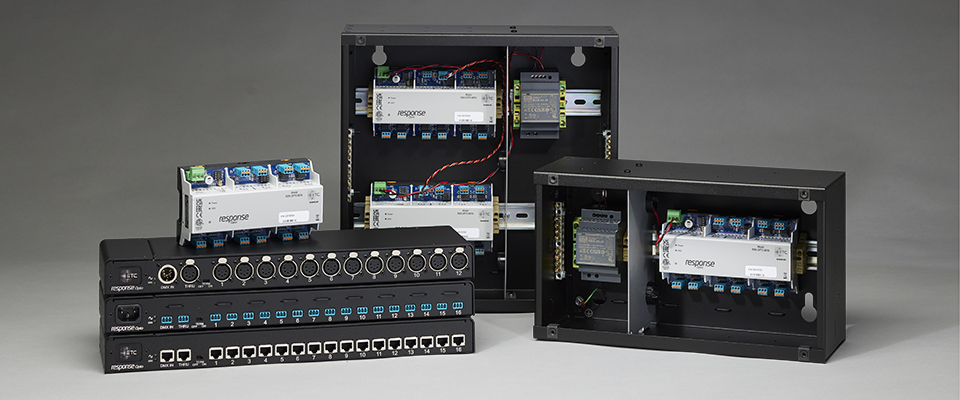

Meet the family

Opto-Splitters Family Shot

Infrastructure that embraces change

ETC fixtures keep getting smarter. With a fully integrated setup, users can utilize our update tool, UpdaterAtor, to access the latest firmware for their system. With ETC gateways, opto-splitters, and fixtures, users don’t have to fight infrastructure to update easily.

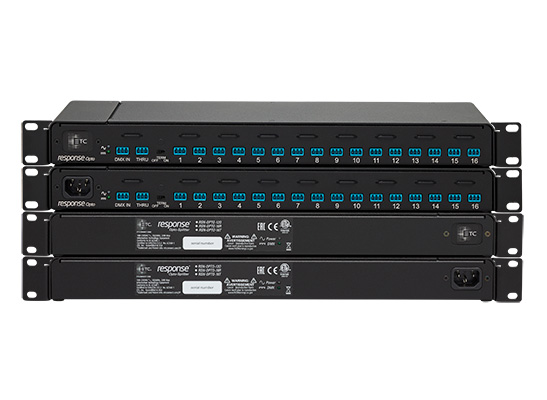

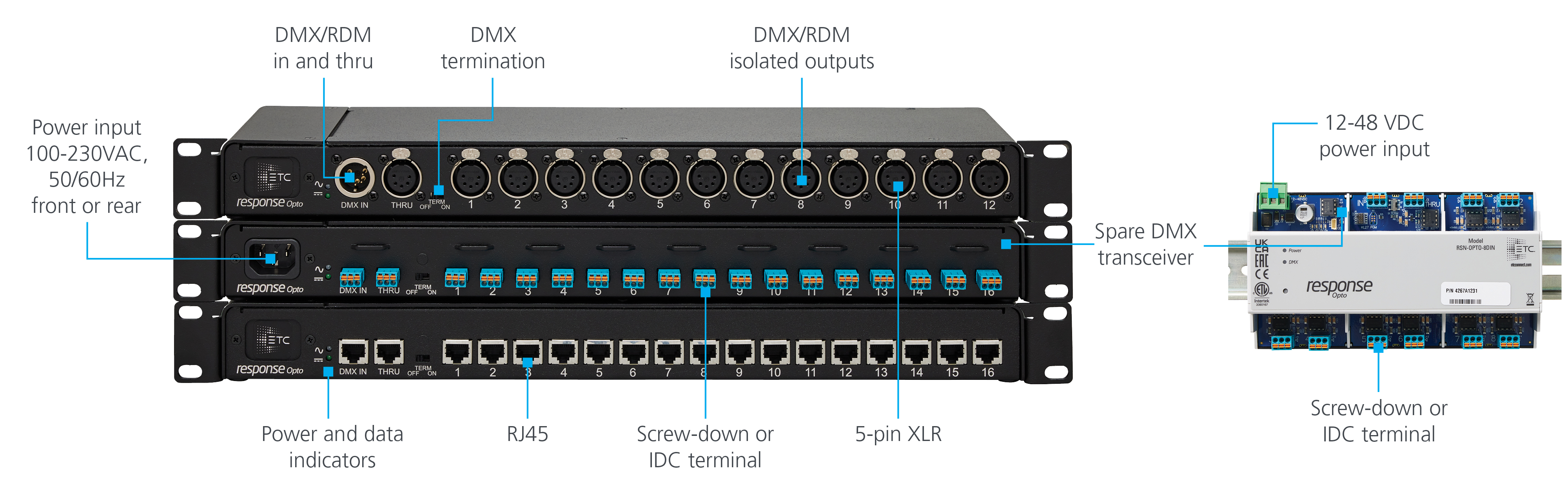

The ins and outs of power and data

You want your system to be tamperproof, but accessible. On the Response Opto-Splitter, the mounting configurations are completely customizable to the user. On tour? You might want all your ports on the front. Permanent installation? Try the back.

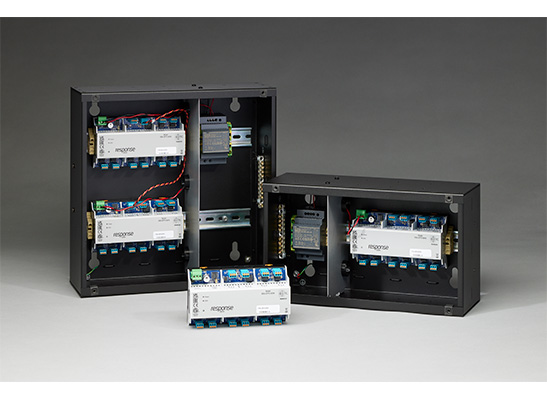

Data where you need it

DIN rail and wall-mount splitters are a contractor’s best friend. The included 48 VDC power supply makes installation straightforward.

UL 924 Listed

The Response Opto-Splitter is approved for the U.S. emergency controls standard UL 924 when DIN Rail mounted in the OPTO-BOX or OPTO-DBOX configurations. This means the Opto-Splitter is a safe and reliable way to distribute control bypass instructions as part of your emergency lighting system.

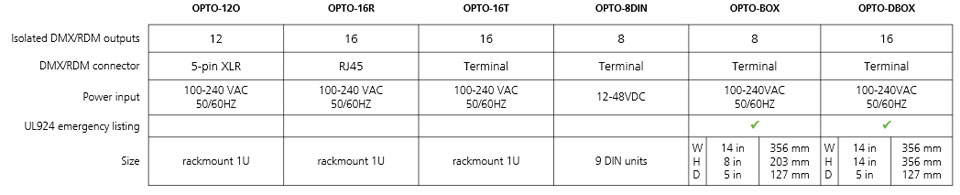

Product Features

	OPTO-12O	OPTO-16R	OPTO-16T	OPTO-8DIN	OPTO-BOX			OPTO-DBOX
Isolated DMX/RDM outputs	12	16	16	8	8			16
DMX/RDM connector	5-pin XLR	RJ45	Terminal	Terminal	Terminal			Terminal
Power input	100-240 VAC 50/60HZ	100-240 VAC 50/60HZ	100-240 VAC 50/60HZ	12-48VDC	100-240 VAC 50/60HZ			100-240 VAC 50/60HZ
UL924 emergency listing					Yes			Yes
Size	rackmount 1U	rackmount 1U	rackmount 1U	9 DIN units	W H D	14 in 8 in 5 in	356 mm 203 mm 127 mm	W H D	14 in 14 in 5 in	356 mm 356 mm 127 mm
