Number Edit
The Number Edit control is used to open a numeric keypad for entry of specific numeric data such as channel level, fade time, fade rate, etc.

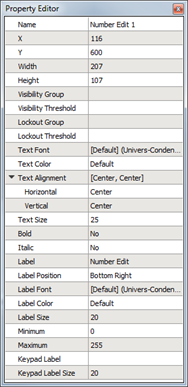

A number edit widget has the following editable properties in addition to the Basic Properties :
- Text Font - the font used to display the text on the number edit label
- Text Color - the color of the numerical text displayed on the date label
- Text Alignment - the vertical and horizontal alignment of the numerical text displayed on the date label
- Text Size - the height of the text (in pixels) of the numerical text displayed on the date label
- Bold - a "Yes" or "No" setting used to bold the numerical text on the date label
- Italic - a "Yes" or "No" setting used to emphasize the numerical text on the date label
- Label – a text label for the number edit
- Label Position - the vertical and horizontal alignment of the number edit text
- Label Font - the font used to display the level number edit text
- Label Color - the color of the text displaying the number edit label
- Label Size - the height of the text (in pixels) of the number edit label text
- Minimum - defines the minimum value that can be displayed
- Maximum - defines the maximum value that can be displayed
Minimum and maximum values set in ControlDesigner only determine what values may be displayed. These settings do not reflect what values may be entered from the Paradigm Touchscreen.

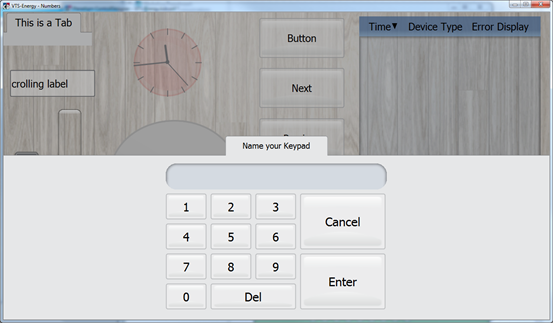

- Keypad Label - the text label that displays on the keypad in the configuration when the number edit button has been activated
- Keypad Label Size - the height of the text (in pixels) of the numerical text displayed on the Keypad Label
Reference Control Properties for instructions to configure each property.
