31.4 Front Panel Diagrams

Figure 31.2. Programmer section of the Hog 4 and Hog 4-18 front panel

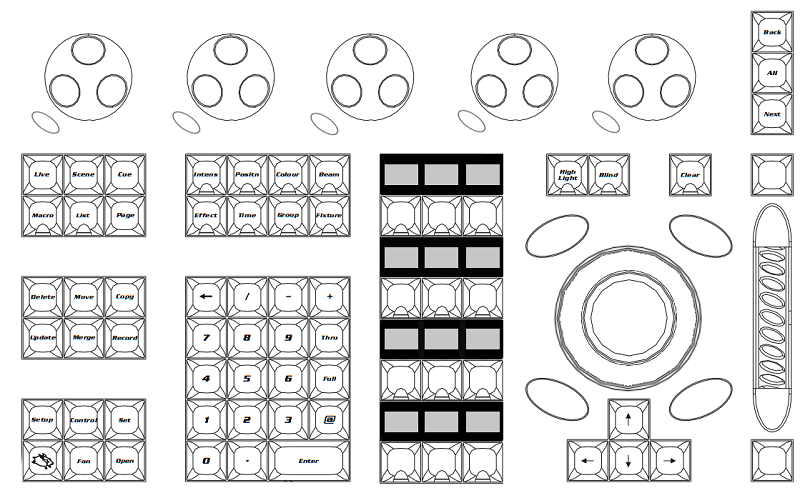

Diagram of right hand side of the Hog 4 front panel

Figure 31.3. Playback section of the Hog 4 front panel

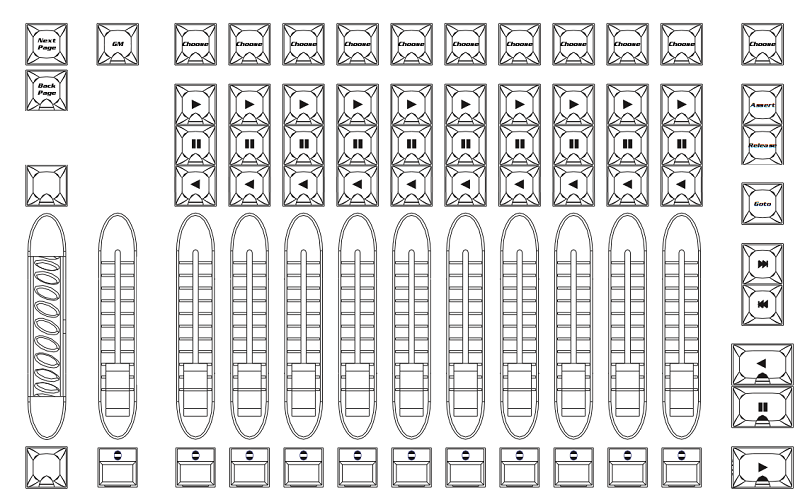

Diagram of left hand side of the Hog 4 front panel
