23.1 LTC Input into Console

Linear Timecode (LTC) is a form of SMPTE timecode encoded into an audio signal. The Hog 4 OS can listen to LTC by inputting the LTC signal directly into the back of the Hog 4-18, Hog 4, or Full Boar 4. The Road Hog 4 and HedgeHog 4 consoles do not have an LTC input built into the back of the console and therefore require that a USB LTC widget be attached.

To bring LTC into the system through the console:

  1. Connect the LTC source (timecode generator) to the LTC IN port on the console's rear panel using a balanced 3-pin XLR connector (you can plug in up to eight external USB LTC widgets to the console for addition LTC inputs).

  2. Open the Network window. [SetupNetwork]

  3. Click on the DP8000 that is associated with console's built in outputs and then press the Settings button at the top of the network window. This is typically DP8000 #1 unless you have configured the console's internal DP8000 to run on a different net number.

    NOTE: You must be running an internal DP8000 on the console to bring LTC input into the desk as LTC input is handled by the DP8000 process.

  4. Select the Linear Timecode tab in the DMX Processor 8000 Settings window.

  5. Map an LTC Widget to one of the eight indexes by pressing the blue plus button located to the far right of the index, then select an LTC Widget from the device drop down menu and press Apply.

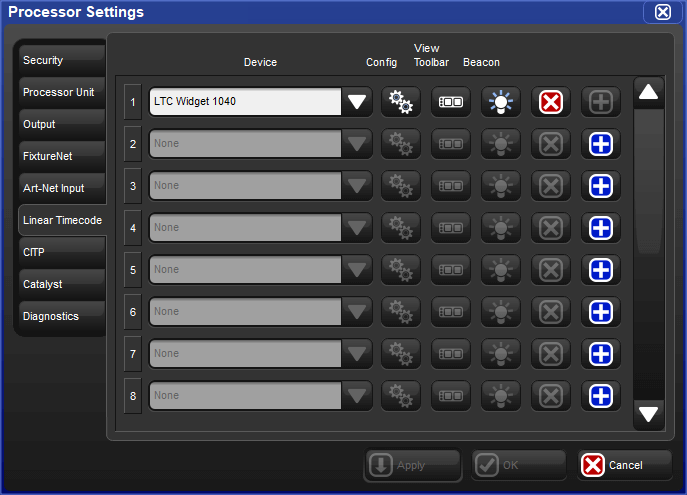

    Timecode mapping pane of DMX Processor node settings window
