Icons are images that can be applied in various places throughout Eos to customize your workspace.
Any targets that can be applied to a direct select (other than channels, scenes, and buttons) can be assigned an icon, which can be configured to appear on the direct select button in Direct Selects (Tab 4) or Custom Direct Selects (Tab 39). See Custom Direct Selects and Configuring Direct Selects.
Icons can also be added and configured as magic sheet objects. See Magic Sheet Icon Library.

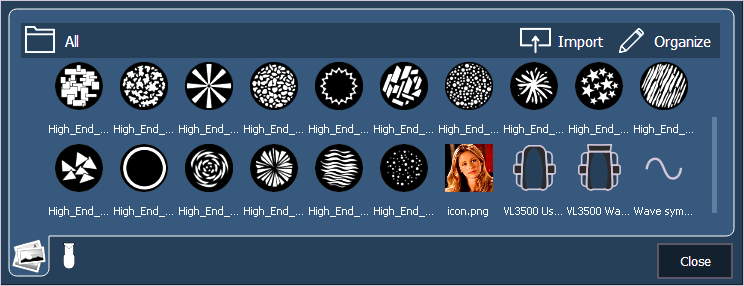

Select the Import button to add new icons to the library. Use the pop-up menu to navigate to the appropriate folder, select one or more images, and select OK. SHIFT or CTRL can be held to select multiple consecutive or nonconsecutive images.
Accepted image formats for import are .bmp, .gif, .ico, .jpg, .pbm, .pgm, .png, .ppm, .svg, .svgz, .tga, .tiff, .xbm, and .xpm. The maximum image size is 1920 x 1920.

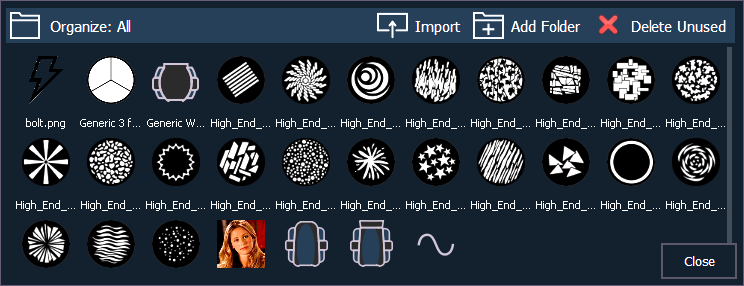

Select the Organize button to enable the following additional button options:
Icons can be dragged in and out of folders. Selecting an image or folder in organize mode will enable the following options:
Any SVG (Scalable Vector Graphic) file used as the icon for multiple targets can be given a unique color per instance. The files must be tagged using the same guidelines for Importing Fixture Symbols.
