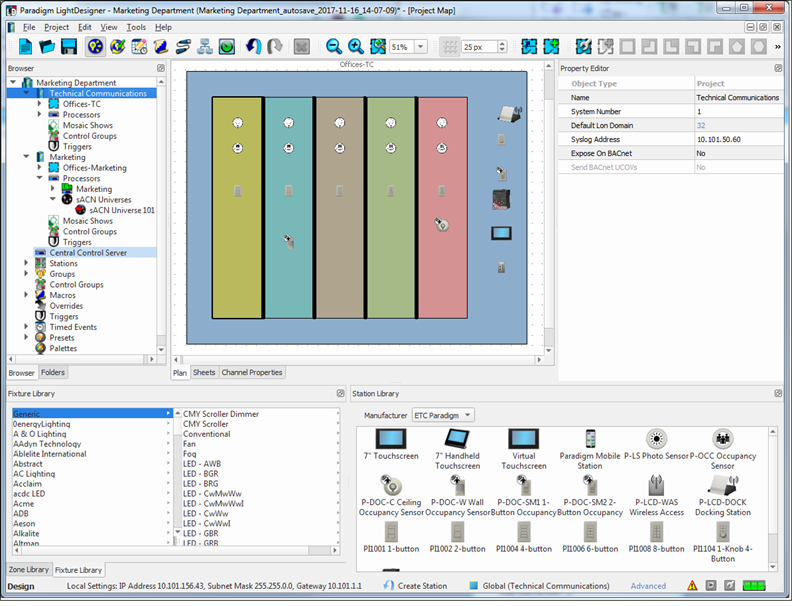

The bottom section of the Design view includes the Zone, Fixture, and Station libraries. Adding objects to the configuration from within the libraries is as simple as dragging and dropping the object from the library into the desired Space within the Plan workspace. Toggle between the Fixture and Zone libraries utilizing the labeled tabs.
Note: Libraries are selectable only when a Primary Space or sub-space are selected and displayed in the Plan workspace.

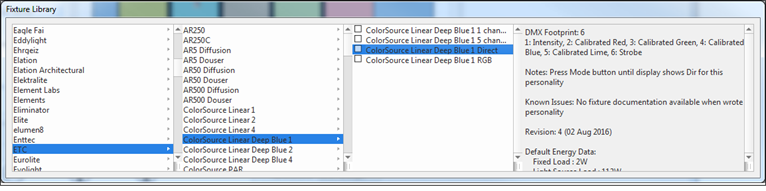

The fixture library is an integral tool of LightDesigner and supports a wide variety of fixtures from most industry manufacturers. The fixture library is organized into four sections which populate depending on the selection. The first section is for Manufacturer selection, depending on that selection the next section populates with available fixture types from the selected manufacturer, the next section populates with specific fixture models, and the last section with fixture notes of the selected fixture type.
To add the selected fixture model to a configuration, click and drag the model into the Plan workspace of the selected Space.
Note: Reference the Fixture Library Notes for a complete listing of fixture profiles available per manufacturer.

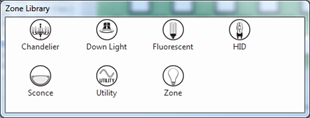

The zone library consists of a standard set of generic fixture types for selection. These fixture types are intensity only parameter fixtures.
The station library consists of the ETC Paradigm, ETC Heritage, and a small selection of other manufacturer's LonMARK® compliant stations and sensors.
