Using Design View

Use the Design view to design the lighting system for the space you have created in the New Project Wizard.

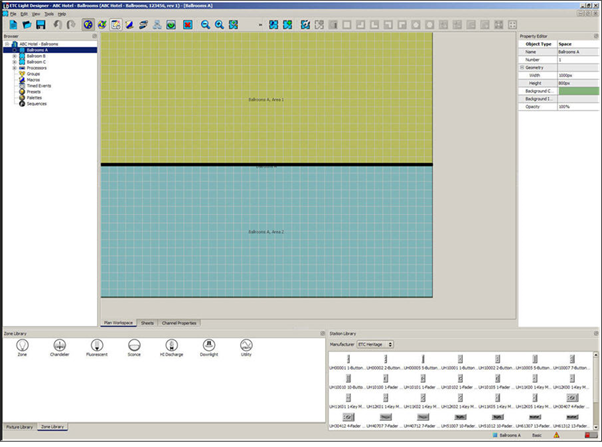

The Design view is split into four main areas of user interaction:

• Browser, Folders (depending on the selected tab)
• Error Browser
• Plan workspace, Sheets view, or Channel Properties (depending on the selected tab)
• Property Editor
• Zone, Fixture and Station Libraries

The Design view provides all of the tools and features required to design the space including:

• the ability to fully define how the primary and sub-spaces are laid-out
• the tools to add channels, fixtures, stations
• the ability to add partition walls to combine or divide your new spaces
