Export Equipment List

Equipment lists can be exported from a LightDesigner configuration using the "Export Data" feature in the Project menu.

Export an equipment list by selecting "Export Data > Equipment List" from the "Project" menu.

The "Export Equipment List" window will display for folder selection where the file should be saved.
Browse to the desired folder location and click [Select Folder]. LightDesigner will export the equipment list in OpenDocument Spreadsheet (*.ods) format and display a dialog to directly open the folder containing the created list or close the dialog and continue normal operation.

Note: LightDesigner exports a separate equipment list for each project in the configuration even if there is no actual equipment other than the basic processor and primary space data in the project.

After exporting, you can edit the data in a spreadsheet, then re-import the equipment list back into the same configuration or into a new configuration.

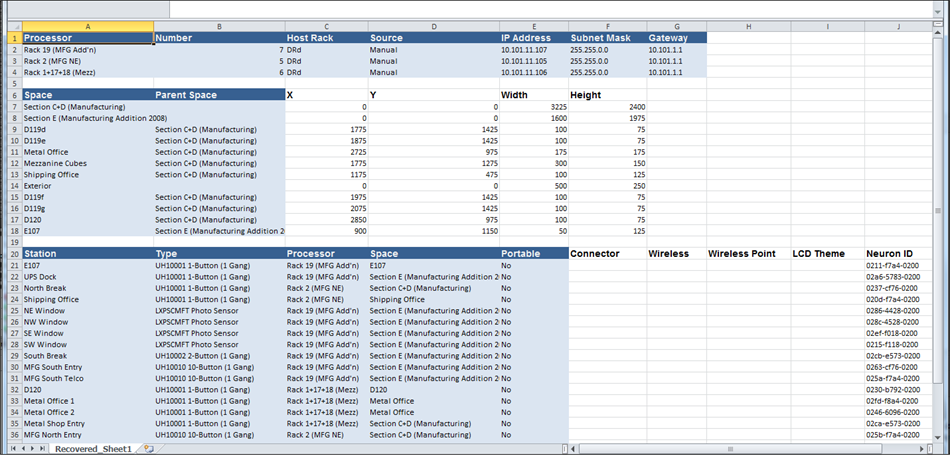

Example Exported Equipment List

In the example above, all data represented was exported directly from a sample LightDesigner project.
