| S P E C I F I C A T I O N S |
| FEATURES |
- Wired DMX or wireless ArcMesh control network
- Stepless, smooth dimming to absolute zero
- Convection cooled
- Fan-free, silent operation
- Available in a dual-input emergency version
|
| OPTICAL |
- High-grade, narrowly binned Bridgelux emitters
- CRI (color rendering index) = 90+
- 2700K/3000K color-temperature options
- 19°, 24°, 37° and 60° beam-angle options
- Excellent thermal management ensures the LEDs will meet anticipated 50,000-hour life cycle
- 5,120 lumen output
- Recessed aluminum reflectors for minimal glare
|
|
| ELECTRICAL |
- Onboard driver
- Less than 3W quiescent load
- High-frequency dimming control
- Switched IEC input (standard version)
- Dual, hardwired cable input (emergency version)
|
|
| CONTROL |
- DMX over CAT5 using NEUTRIC® etherCON®
- Remote, wireless configuration using ArcSystem commissioning software
|
|
| MECHANICAL |
- High-grade aluminum and steel construction
- Fine-texture, high-temperature, powder-coated paint finish
- Integral ArcMesh antenna
|
|
|
|
| PHYSICAL |
|
| Product Dimensions*
|
Product Weight |
| MODEL |
HEIGHT |
WIDTH |
DEPTH |
| |
inches |
mm |
inches |
mm |
inches |
mm |
| 4 Cell Pendant |
9.84 |
250 |
7.87 |
200 |
|
| |
|
| MODEL |
WEIGHT |
SHIPPING WEIGHT |
| |
lbs |
kgs |
lbs |
kgs |
| 4 Cell Pendant |
13.2 |
6 |
|
|
|
|

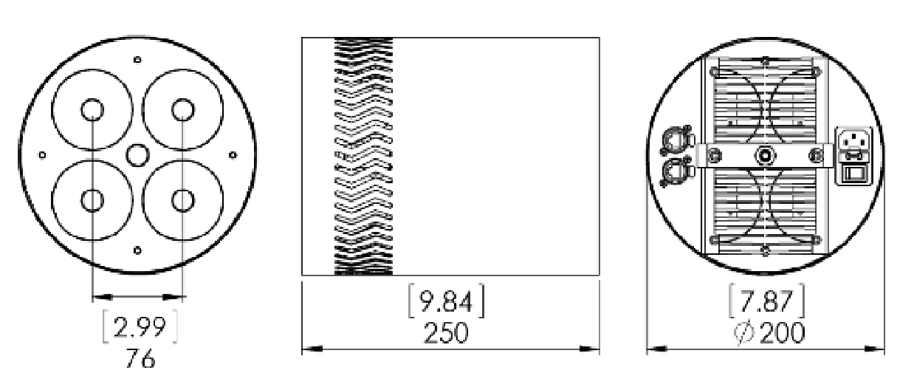

Pro Four-Cell fixed dimensions
| Lumen table |
| COLOR TEMP |
CRI |
MR16 IM @ 70ͦ C |
ONE-CELL IM @ 70ͦ C |
TWO-CELL IM @ 70ͦ C |
FOUR-CELL IM @ 70ͦ C |
EIGHT-CELL IM @ 70ͦ C |
| 2700K |
90 |
572 |
1191.8 |
2383.6 |
4767.5 |
9534.4 |
| 3000K |
90 |
628 |
1280.3 |
2560.6 |
5121.2 |
10242.4 |
|
|

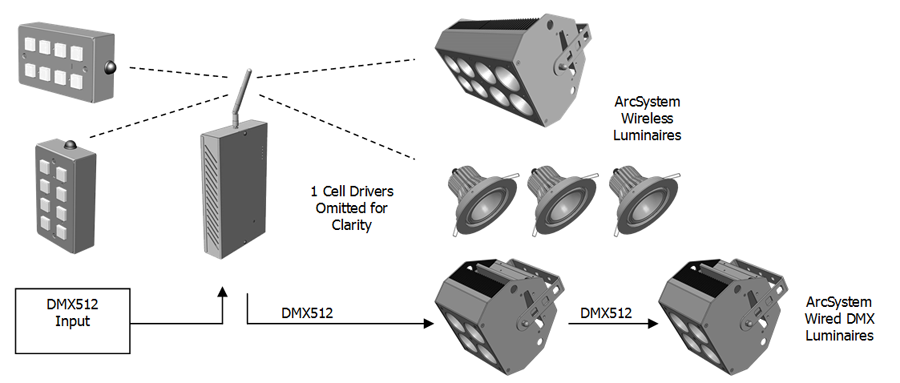

TYPICAL SYSTEM LAYOUT
ArcSystem luminaires require a constant circuit connection for operation. Intensity control of each luminaire is achieved by using either a wired DMX signal (via RJ45) or a wireless ArcMesh signal (via ArcMesh Transmitter).
EMERGENCY CONNECTION
A dual-input emergency version of this luminaire is available. Emergency luminaires have two line voltage leads that are wired to the luminaire and have the following functions:
- Normal power
- Emergency power (hot, neutral and earth)
Note: Input 2 (emergency power) must be wired in fire-rated cable to the luminaire connection point. Please consult with a qualified electrical engineer for correct installation procedures.
If normal power has been lost, the luminaire will be forced into a full-on state running from the emergency power supply. There is no control of the luminaire via wireless ArcMesh network or wired DMX until normal power is turned back on.
