See all ETC products Print

ColorSource Consoles

ColorSource Console Control

Small console, big control.

ColorSource consoles provide affordable, comprehensive control with an approachable, streamlined interface.




Request a Demo

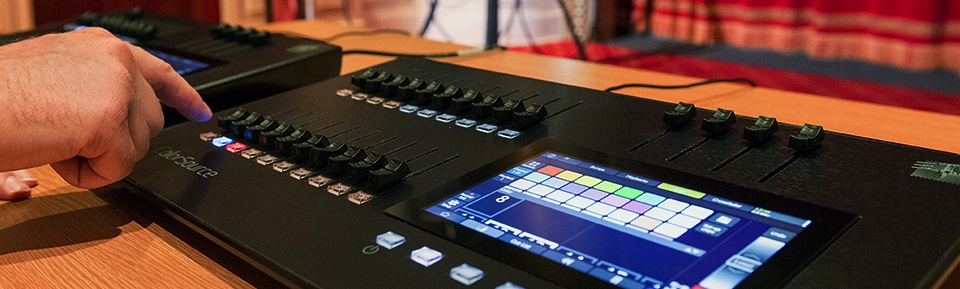

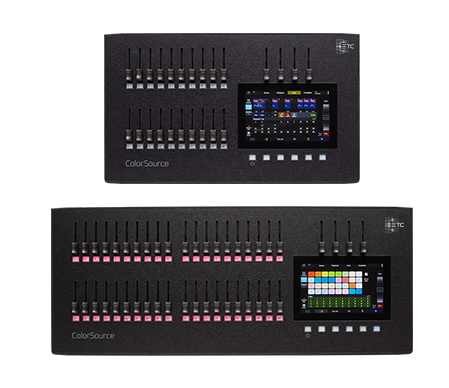

ColorSource 20 and ColorSource 40

With ColorSource consoles, setup and programming is a breeze! From patching to performance, ColorSource consoles enable you to navigate and program quickly. The multi-function onboard touchscreen provides not only a customizable stage map but also color and parameter controls, a full palette system, effects manipulation, and the Playback Toy live busking controls.

The onboard faders can be used as direct channel controls or as playback faders. For preprogrammed shows, ColorSource consoles include comprehensive cue stack functionality. Assign additional faders as submasters, group masters, or a grandmaster.

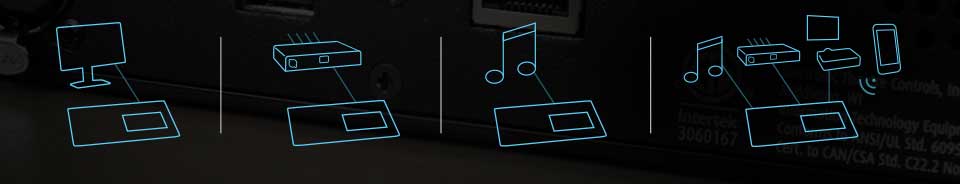

ColorSource AV consoles

ColorSource AV

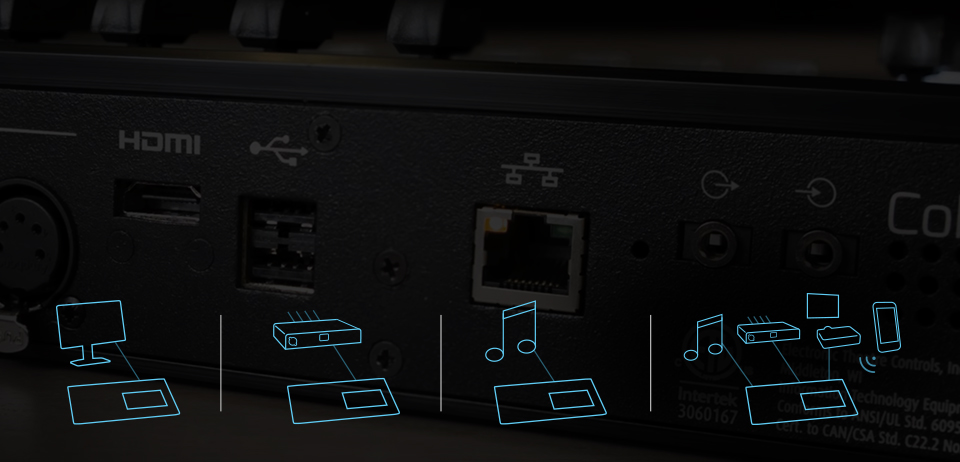

ColorSource AV consoles retain all standard ColorSource features, but add sACN and Art-Net networking, OSC, audio input/output and an HDMI video connection.

Use the video output for an external status display monitor or as part of an integrated AV setup with sound and image cues. Use the groundbreaking Video Toy for immersive live media effects – busk along with the band, or let the sound-to-light feature take over!

ColorSource AV consoles also support Amigo, a web-based remote focus tool.

ColorSource AV

ColorSource AV consoles retain all standard ColorSource features, but add sACN and Art-Net networking, OSC, audio input/output and an HDMI video connection.

Use the video output for an external status display monitor or as part of an integrated AV setup with sound and image cues. Use the groundbreaking Video Toy for immersive live media effects – busk along with the band, or let the sound-to-light feature take over!

ColorSource AV consoles also support Amigo, a web-based remote focus tool.



Connect with ColorSource

Connect with ColorSource

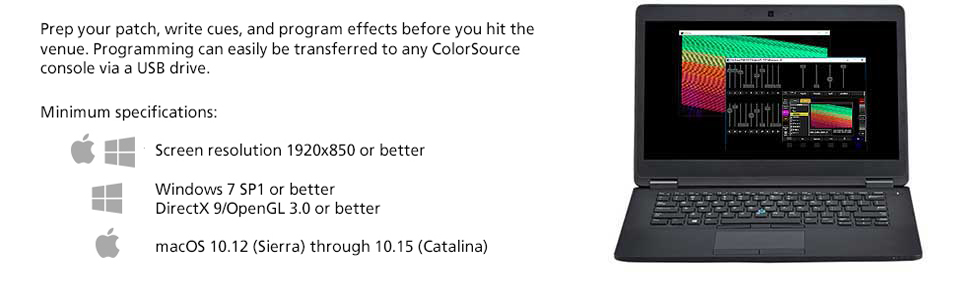

ColorSource Offline Editor

ColorSource Offline


Which ColorSource console is right for you?


All ColorSource consoles feature


  • 80 control channels/devices
  • 7" integrated multi-touch display
  • 4 user-definable master faders
  • 5 user-definable buttons for common commands
  • Virtual level/rate paddle
  • Cue list record and playback functions
  • Non-intensity parameter control
  • Console lockout

  • Color, Position and Beam Pallettes
  • Color, intensity, position and parameter effects
  • Intuitive color control of LEDs
  • RDM discovery & configuration
  • Onboard help system
  • "Simple Mode" operation for 4 looks
  • Playback Toy for live busking
  • Kensington Security Slot

ColorSource 20ColorSource 40ColorSource 20 AVColorSource 40 AV
DMX input/output
Control Faders		20 40 20 40
5-pin DMX ports1122
USB Ports1 1 22
Playback pages with
configurable modes		10 (200 total)10 (400 total)10 (200 total)10 (400 total)
Network (sACN/
Art-Net universes)		5 5
3.5mm/ 1/8" stereo
audio input/output		YesYes
Sound-to-light
playback		YesYes
HDMI port for monitor
or image/visual
effects		YesYes
Video Toy for
Interactive visual
effects		YesYes
"Amigo" web-based
remote control over
network		YesYes
OSC supportYesYes
