Source 4WRD Color II

S P E C I F I C A T I O N S

SOURCE

• Nichia LEDs
• 6,042 / 5,051 / 5,687 Max lumens
• 42.2 / 46.3 / 45.9 Lumens per watt
• L70 rating (hours to 70% output): >60,000 hours*

COLOR

• Colors used: RGB-A (Red, Green, Blue and Amber)
• Color temperature range 2,200–6,500 K
• Calibrated array
• No red shift

OPTICAL

• Swappable lens tubes between 5-90 degrees
• 79 mm Gate size
• Aperture size: lens dependent
• Pattern projection
• A or B Pattern size
• 1.2 K and 20 K Camera flicker control/ Hz range

ELECTRICAL

• 100-240 VAC 50/60 Hz power input
• 150 W draw at full
• Maximum of 10 fixtures per non-dimmed circuit (R20 module)
• Requires power from a non-dimmable source.
• Inrush:
  • 120 V: 32 A (first half-cycle)
  • 240 V: 60 A (first half-cycle)

THERMAL

• Ambient operating temp: 5°–50° C (41°–104° F)
• Fan (controllable): Yes (no)
• No Droop compensation
• 27 dBa average at 1 m
• 458 BTUs/hour (120 V)
  449 BTUs/hour (240 V)

CONTROLS

• DMX / RDM via RJ45
• RDM configuration
• UI type: Seven-segment
• 12 Onboard presets
• 5 Onboard sequences
• No onboard effects
• Fixture-to-fixture control

PHYSICAL

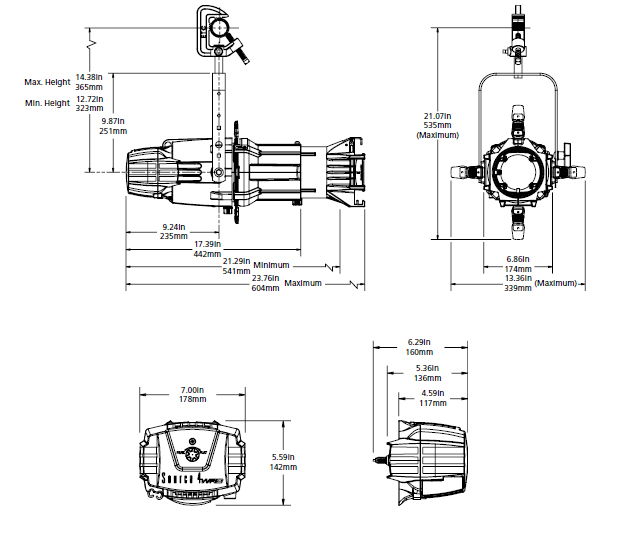

Source 4WRD Color II Dimensions (120 V and 240 V)

Source 4WRD Color Weights* (120 V and 240 V)

* Does not include mounting hardware or lens tube

ORDERING INFORMATION

Source 4WRD Color II
