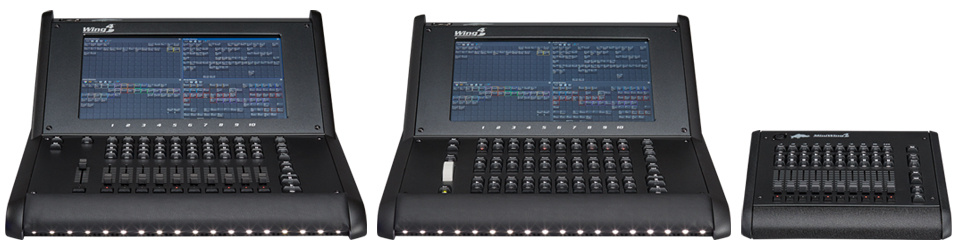

Hog 4 Wings

Wings help your Hog fly! Expand your console’s work surface easily without giving up crucial muscle memory. Using the same high-quality controls as found in the Hog 4 range of consoles, each wing ensures responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable.

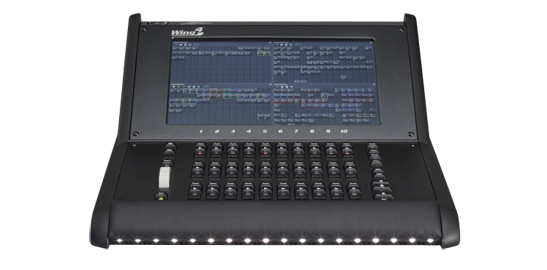

The Master Wing 4 is equally at home next to a big Hog 4 console or as part of a Hog 4 PC system. It provides 30 additional faderless playback capabilities for any Hog 4 console or Hog 4 PC software.

It uses the same high quality controls as found in the Hog 4 range of consoles, ensuring responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable. A 15.6” touch screen is integrated in the wing, allowing you to expand your console using one integrated unit.

Product Features

• USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
• Internal 15.6-inch 10-point touchscreen
• 30 faderless masters each with Choose, Go and Flash Buttons
• Master Choose column and paging buttons
• Dedicated rate wheel
• Super Widget Expansion slot provides four DMX outputs from Hog 4 PC
• Integrated dimmable white lap work light
• One dimmable white/blue desk light included
• USB 2.0 ports: 2 rear
• Dust cover included
• Custom road case available
• Compliance: ETL, CETL, CE

Electrical

• Mains power: 100-250VAC, 50/60Hz, max 100W
• Mains connector: IEC320 C13
• Fuse: 1x 5x20mm 5AT fuse

Weights and Dimensions

• Width: 512mm / 20.2"
• Depth: 610mm / 24.0"
• Height: 244mm / 9.6"
• Weight: 12.3kg / 27.2lb

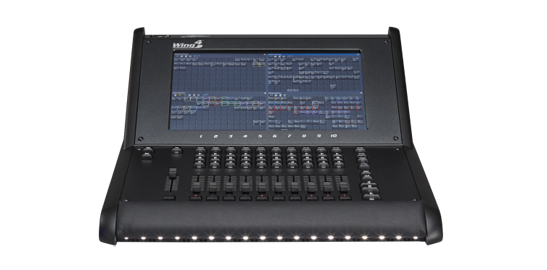

The Playback Wing 4 provides ten additional faders plus one Grand Master, all motorized. Hog 4 consoles and Hog 4 PC software benefit from the additional playback hardware the Playback Wing offers.

It uses the same high quality controls as found in the Hog 4 range of consoles, ensuring responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable. A 15.6” touchscreen is integrated in the wing, allowing you to expand your console using one integrated unit.

Product Features

• USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
• Internal 15.6-inch 10-point touchscreen
• 10 motorized playback faders
• Motorized Grand Master
• Master Choose column and paging buttons
• Super Widget Expansion slot provides four DMX outputs from Hog 4 PC
• Integrated dimmable white lap work light
• One dimmable white/blue desk light included
• USB 2.0 ports: 2 rear
• Dust cover included
• Custom road case available
• Compliance: ETL, CETL, CE

Electrical

• Mains power: 100-250VAC, 50/60Hz, max 100W
• Mains connector: IEC320 C13
• Fuse: 1x 5x20mm 5AT fuse

Weights and Dimensions

• Width: 512mm / 20.2"
• Depth: 610mm / 24.0"
• Height: 244mm / 9.6"
• Weight: 12.5kg / 27.6lb

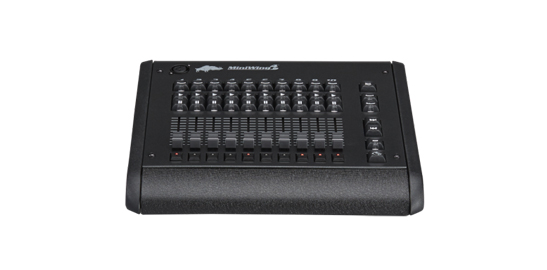

The MiniWing 4 provides ten additional non-motorized faders for use with any Hog 4 console or Hog 4 PC. It uses the same high quality controls as found in the Hog 4 range of consoles, ensuring responsive and reliable operation. One Hog LED desk light is supplied, fully dimmable and software controllable.

Product Features

• USB connection to Rack Hog 4, Hog 4 PC, or any Hog 4 family console
• 10 playback masters
• Master column and paging button
• USB 2.0 ports: 2 rear
• Kensington security slot
• One dimmable white desk light included
• Dust cover included
• Custom road case available
• Compliance: ETL, CETL, CE

Electrical

• External PSU input: 100-250VAC, 50/60Hz, max 25W
• External PSU output: 12VDC 2.5A/25W

Weights and Dimensions

• Width: 308mm / 12.1"
• Depth: 315mm / 12.4"
• Height: 67mm / 2.6"
• Weight: 2.1kg / 4.6lb
