Gio

S P E C I F I C A T I O N S

SYSTEM CAPACITY

• 4096 or 24,576 outputs*
• 32,768 Control Channels (mapped to any number from 1 to 99,999)
• 10,000 Cues
• 999 Cue Lists
• 999 Submasters
• 100 Fader Pages
• 4 x 1000 Palettes (Intensity, Focus, Color, Beam)
• 1000 Presets (all palette)
• 1000 Groups
• 1000 Effects (relative, absolute or step)
• 99.999 Macros
• 1000 Snapshots
• 1000 Curves
• 1000 Color Paths
• Solid state hard drive
• USB ports for flash drives, pointing devices, keyboards

*Devices with 3 DVI connectors on the back panel can upgrade to 12,288 outputs.

INTERFACES

• Two individually configurable ethernet ports, 802.3af compliant PSE
• ETCNet2™, Net3™ (powered by ACN), and Artnet and Avab UDP output protocols
• Four DMX-512 / RDM Ports
• Contact closure triggers via D-Sub connector
• Three Display Port connectors support high-resolution external displays (1280x1024 minimum) with optional single-touch or multi-touch screen control. Display port to DVI adapters are provided.
• USB multipurpose (seven ports)
• MIDI Timecode, MIDI Show Control, MIDI Notes through Gateway
• OSC Transmit and Receive
• UDP Transmit and Receive
• SMPTE Timecode through Gateway
• Contact closure (12 analog inputs, 12 SPDT contact outputs, RS-232) through Gateway

PHYSICAL

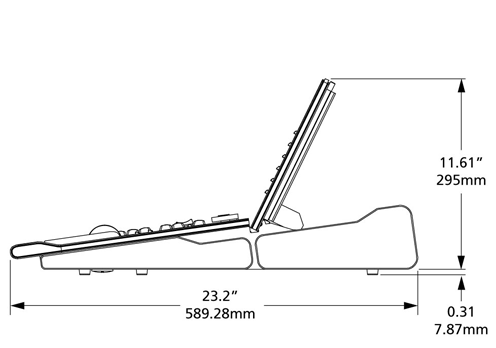

Gio Dimensions*

Gio Weights*

*Weights and dimensions typical.

ORDERING INFORMATION

Gio

Gio Accessories
