DMX/RDM One-Port Gateway

DMX and RDM to Ethernet in a wall-mount or portable enclosure

ETC's DMX/RDM One-Port Gateway provides data distribution using the quality and reliability of ETC's network development. Built for using industry-standard streaming ACN (sACN), the One-Port Gateway unlocks the power of your networked system. It also uses bidirectional Ethernet communication with other network devices to send or receive DMX512 and Remote Device Management (RDM) signals.

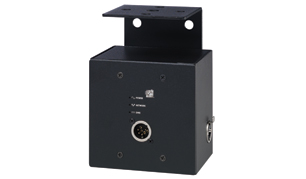

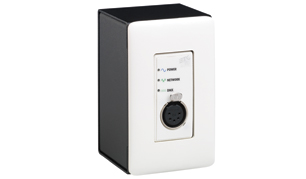

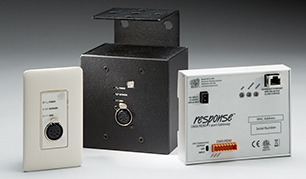

The One-Port Gateway supports up to 512 addresses of control and is available for use as a wall-mount, DIN-rail, or portable gateway. Optional pipe-mount kits are also available.

What are ACN, Net3 and RDM?

ACN - Architecture for Control Networks is a standard for high-speed bidirectional communication over TCP/IP on Ethernet network infrastructure. ACN is a suite of protocols used between network devices for the purpose of greater and more adaptive control in lighting applications.

Net3 - Net3 is ETC's network protocol that uses industry-defined ACN and streaming ACN protocols. Net3 allows Ethernet devices to seamlessly communicate together across the network.

RDM - Remote Device Management is a protocol enhancement to DMX512 that allows bidirectional communication between a system controller and attached RDM-compliant devices over a standard DMX line. This allows configuration, status monitoring, and management of the connected RDM devices.
