Response Mk2 DMX Gateways

Powerful data distribution

The fixtures in a modern lighting designer’s toolkit have become more data-hungry, and ETC’s Gateways are up to the challenge. Response Mk2 DMX Gateways flawlessly connect your sACN network to your DMX runs, allowing you to put data exactly where you need it, saving headaches, money, and time.

Request a Demo

An option for every location

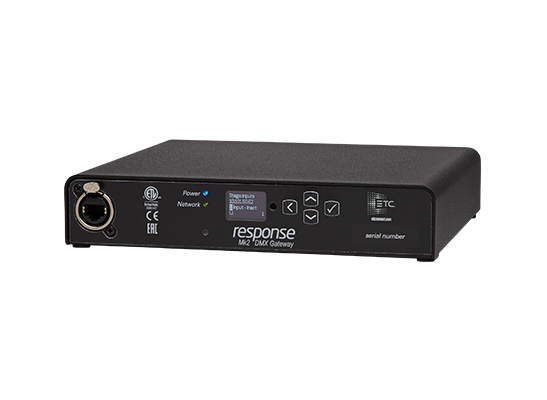

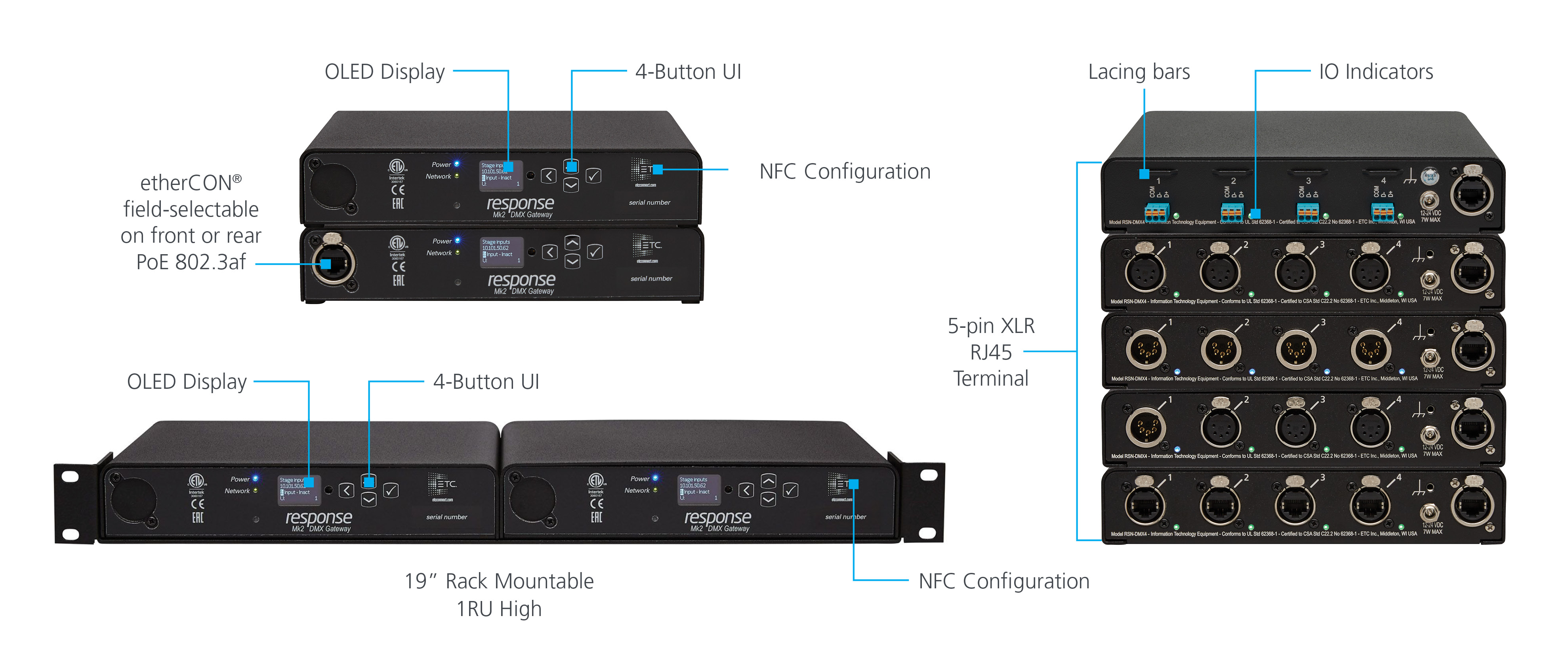

Response Mk2 DMX Gateways provide DMX and RDM data distribution, taking advantage of the reliability and interoperability of industry-standard protocols such as ANSI E1.31 (sACN) and ANSI E1.20 (RDM) using standard Ethernet cabling and infrastructure. The Gateways are available in 1-, 2-, and 4-port models to support multiple DMX universes. Each Gateway supports 256 RDM devices.

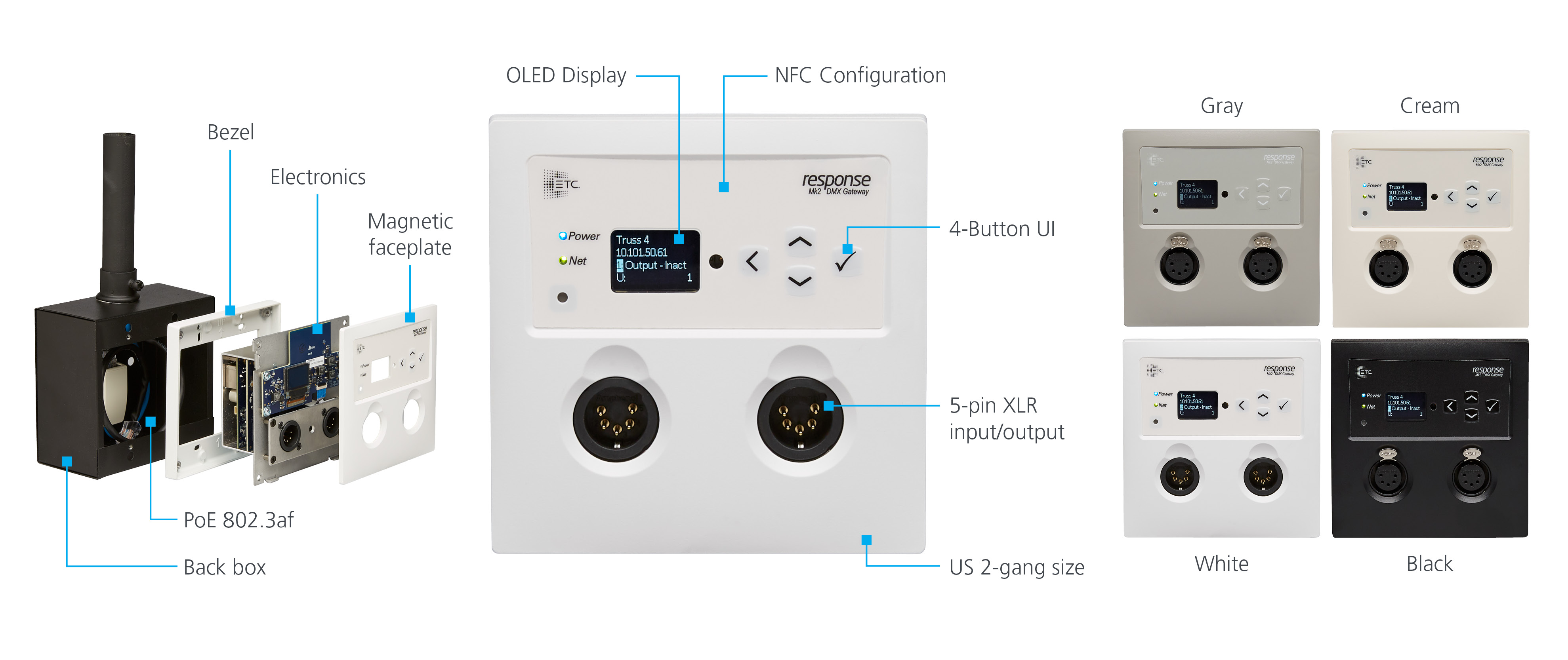

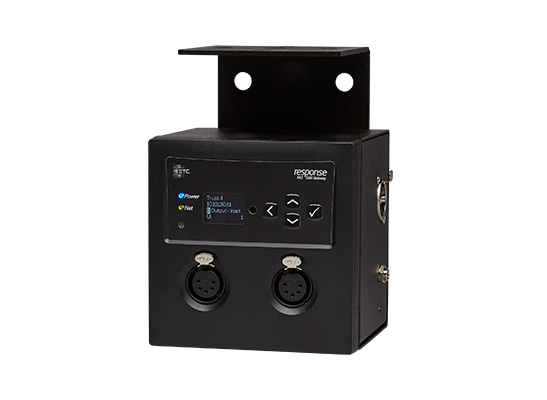

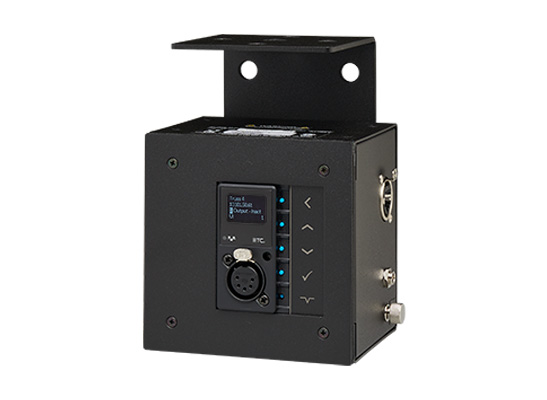

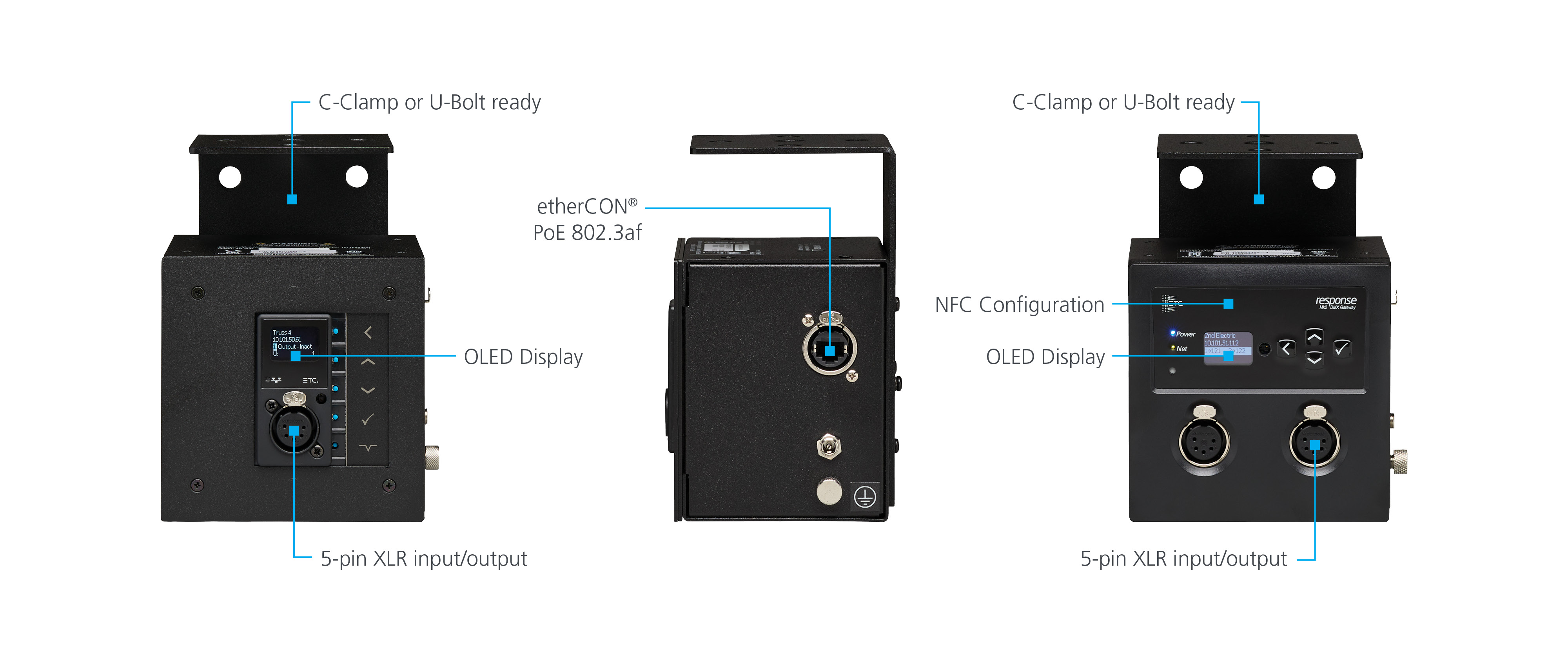

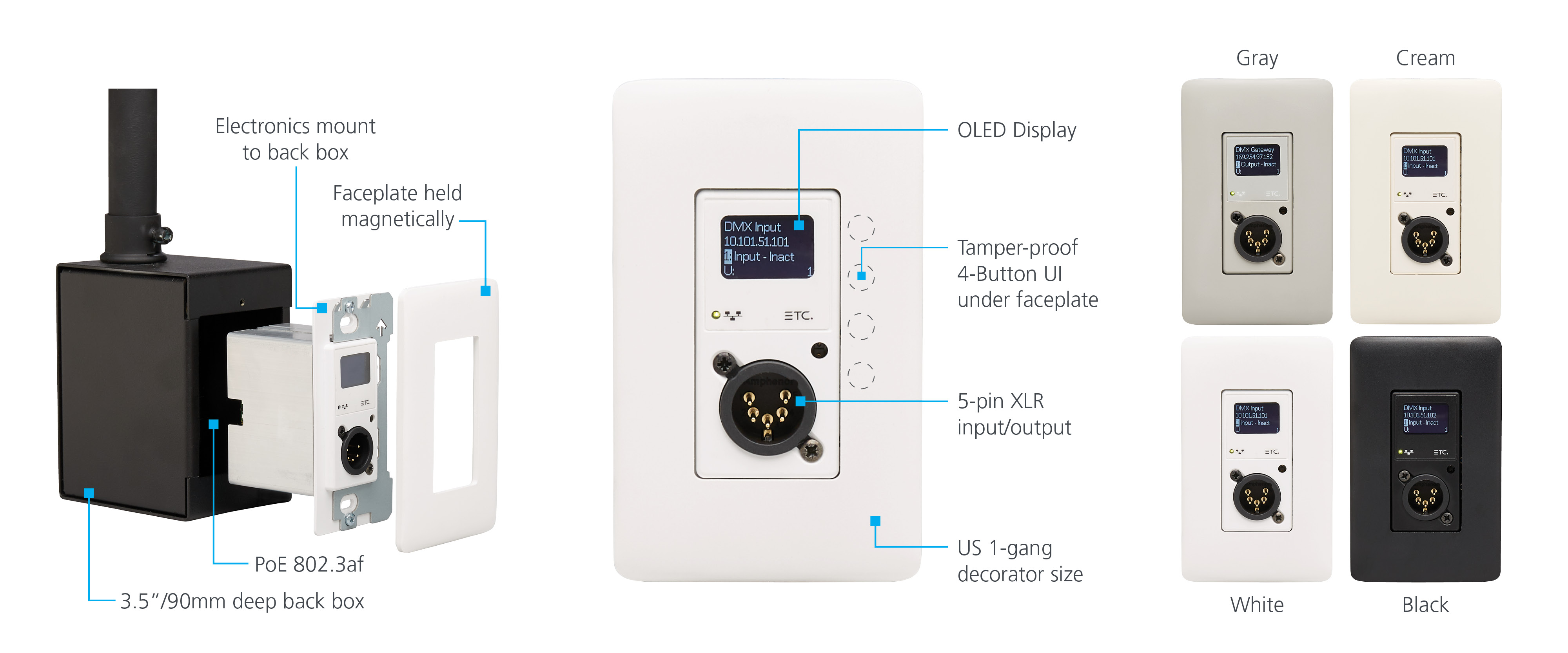

The 1-Port and 2-Port wall-mount models offer faceplates in Cream, Gray, Black, or White to blend in with any environment. And with portable form factors for each model it is possible to use accessories such as rack-mounting trays and c-clamp accessories.

Local and remote configuration

Every model – even the 1-port! – features a crisp OLED screen and four-button interface for configuration, status, and diagnostics right at the Gateway itself.

NFC technology is baked into the 2-port and 4-port (non-DIN) models. A simple tap from a mobile device running the Set Light app can retrieve configuration, edit it in the app, then effortlessly update the gateway with another tap, even while the gateway is powered off.

For larger systems, Response Mk2 DMX Gateways are configurable using ETC’s Concert software. Both network parameters and DMX/RDM configurations can be modified, saved, and re-loaded, allowing for maximum flexibility. On-board diagnostics and output tests make Response Mk2 Gateways a great tool for technicians.

Fully-integrated ETC systems

Response Mk2 DMX Gateways offer seamless integration into ETC’s Unison architectural lighting control systems, and also pair perfectly with ETC’s entertainment controls.

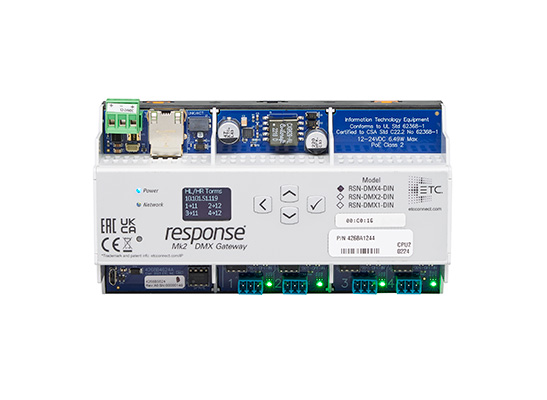

Finding the right Ethernet gateway has never been easier. With wall-mount, portable, and DIN rail form factors, you can always find the perfect fit for your application. And ETC's variety of DIN rail enclosures ensure you have a secure, convenient place to house your DIN rail devices. All Gateways can be powered via Power over Ethernet or 12-24 VDC external power supply.

All models feature:

10/100 Mbps Ethernet connection
sACN (ANSI E1.31) Support (up to eight sources per port)
DMX/RDM (ANSI E1.20) Support
OLED Screen and local UI
cETLus Listed / CE compliant / EAC certified
PoE (IEEE 802.3af) or 12-24 VDC external power supply (available separately)

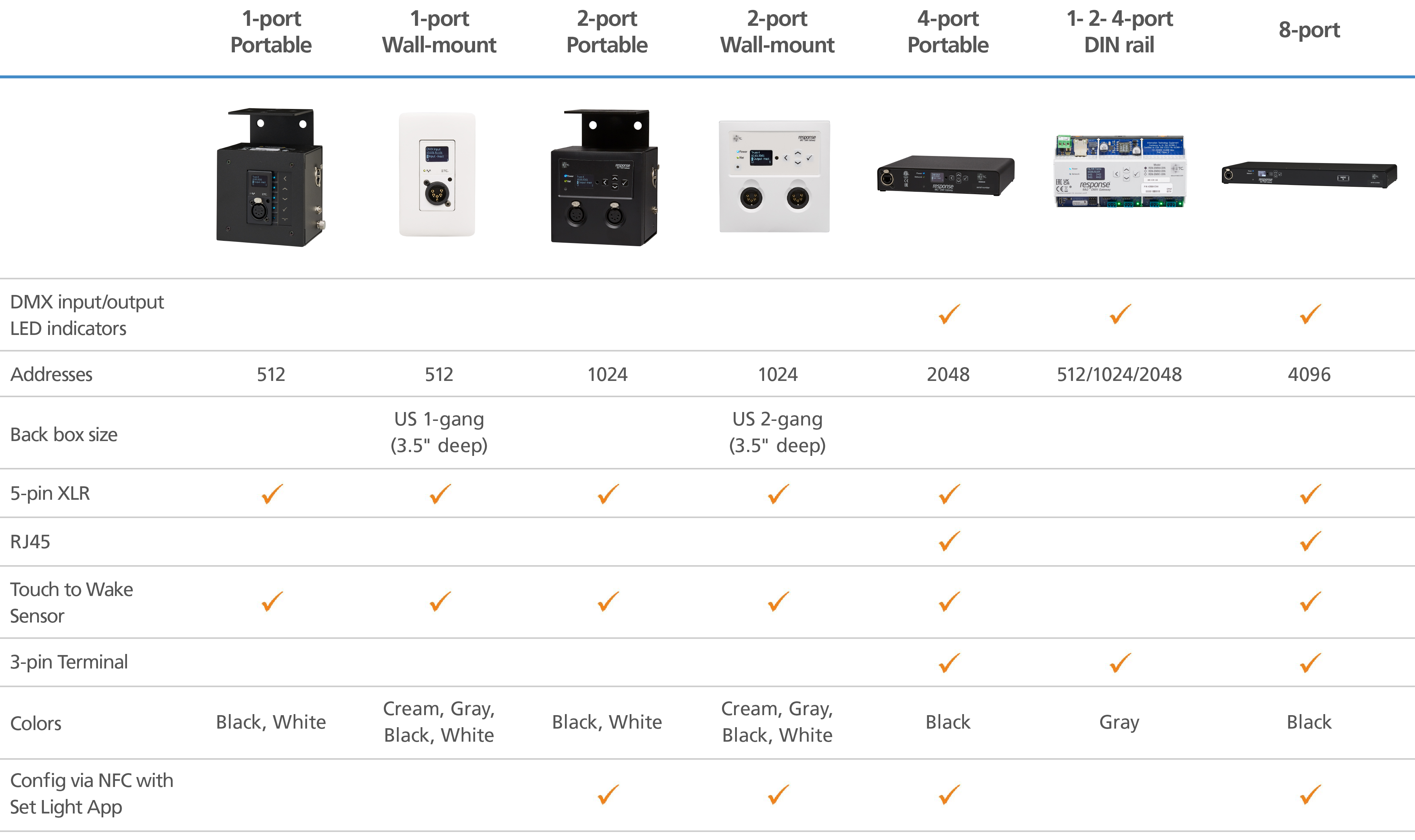

	1-port Portable	1-port Wall-mount	2-port Portable	2-port Wall-mount	4-port Portable	1- 2- 4-port DIN rail

DMX input/output LED indicators
Addresses	512	512	1024	1024	2048	512/1024/2048
Back box size		US 1-gang (3.5" deep)		US 2-gang (3.5" deep)
5-pin XLR M/F
RJ45
Touch to Wake sensor
3-pin terminal
Colors	Black, White	Cream, Gray, Black, White	Black, White	Cream, Gray, Black, White	Black	Gray
NFC/Update Config with Set Light App
