Number Edit

The Number Edit control is used to open a numeric keypad for entry of specific numeric data such as channel level, fade time, fade rate, etc.

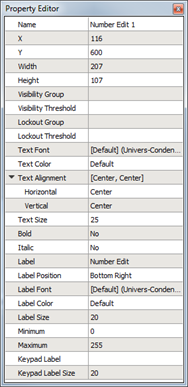

A number edit widget has the following editable properties in addition to the Basic Properties :

Text Font - the font used to display the text on the number edit label
Text Color - the color of the numerical text displayed on the date label
Text Alignment - the vertical and horizontal alignment of the numerical text displayed on the date label
Text Size - the height of the text (in pixels) of the numerical text displayed on the date label
Bold - a "Yes" or "No" setting used to bold the numerical text on the date label
Italic - a "Yes" or "No" setting used to emphasize the numerical text on the date label
Label – a text label for the number edit
Label Position - the vertical and horizontal alignment of the number edit text
Label Font - the font used to display the level number edit text
Label Color - the color of the text displaying the number edit label
Label Size - the height of the text (in pixels) of the number edit label text
Minimum - defines the minimum value that can be displayed
Maximum - defines the maximum value that can be displayed

Note: Minimum and maximum values set in ControlDesigner only determine what values may be displayed. These settings do not reflect what values may be entered from the Paradigm Touchscreen.

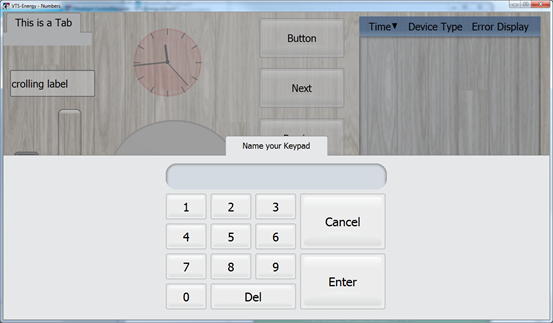

Keypad Label - the text label that displays on the keypad in the configuration when the number edit button has been activated
Keypad Label Size - the height of the text (in pixels) of the numerical text displayed on the Keypad Label

Reference Control Properties for instructions to configure each property.
