3.6 Virtual Playback Wings

To display a Virtual Wing Window on the console:

  1. Press and hold the touchscreen to bring up the menu window press the Virtual Wing button in the menu window -OR- Hold the open key and select virtual wing from the main toolbar.

  2. Use the scroll box at the top of the Virtual Wing Window to assign a playback bar to the Virtual Wing Window.

  3. To adjust which physical controls are displayed in the Virtual Wing Window click on the button. All Virtual Wing window settings are stored per window and can be stored/recalled in views.

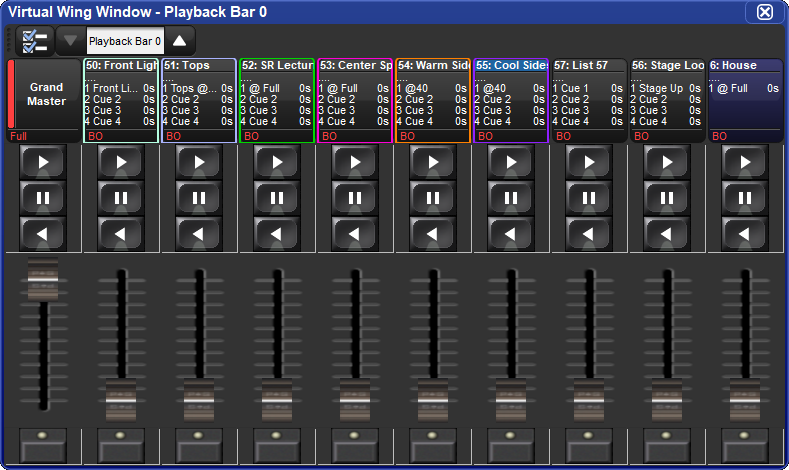

Figure 3.10. The Virtual Wing Window

Virtual Wing Window controlling masters on playback bar 0
