Create Primary Space

Note: Prior to configuring your project and primary spaces, the dimming and control schedules should be completed and available for reference. These schedules are crucial to a successful project design and should include the specific room layouts (number of primary spaces), wall partitions, stations, preset, channels, and zone requirements.

A primary space can be created from the New Project Wizard or from the Browser, or by using the [Create primary space] tool in the toolbar.

Create Primary Space from New Project Wizard

See New Project Wizard or New Server Project Wizard.

Create Primary Space from Browser

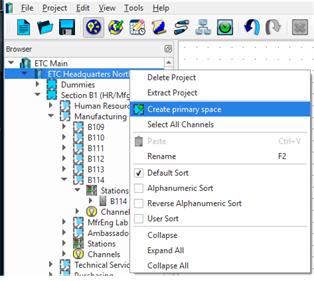

While in the Design view, right-click on the current project name in the Browser and select "Create primary space" from the context menu.

Select the layout for your space from the Primary Space Layout dialog.

Click "OK" to continue.
