Source Four Mini

Big Source Four attitude, small size

Good things come in small packages. The Source Four Mini Tungsten™ is everything you expect from the Source Four brand - ease of use, superior optics, crystal-clear image projection and a bright, even field - but packaged in a tiny fixture that's just one-third the size of a traditional Source Four. A mere nine inches long, the Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children's theaters, and other small scale installations where size matters.

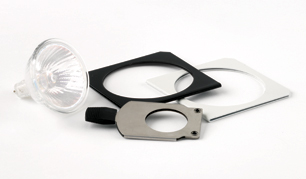

The Source Four Mini is available in four field angles: 19°, 26°, 36° and 50°, with a 2.5-inch diameter lens. It comes in a portable version with a miniature C-clamp, a canopy-mount design with an integral transformer, or a track-mounted design. There is also a low-voltage (12V) tungsten version. All Source Four Mini models include an E-sized pattern holder and a gel media frame, with a range of additional accessories.

Features for all Source Four Mini Tungsten models

• 19°, 26°, 36° and 50° field angles
• 9" long, 2.5" diameter
• Available in 50W tungsten/halogen MR16 lamp (5,000-hour life) or 12V tungsten/halogen lamp
• Portable, canopy-mount and track-mount versions
• E-size pattern holder
• Gel media frame
• Rotating barrel ± 175°
• Three-plane stainless-steel shutter blade assembly
• Tool-free lamp replacement
• Insulated rear handle
• Rugged die-cast aluminum construction
• Black, white, silver or custom colors available

Canopy-mount features

• 4.5 x 1.5" color-matched canopy
• Canopy-mounting hardware for 4" ceiling junction box included
• 12V transformer in canopy for hardwired 120V or 230/240V input

Portable features

• Yoke-mounted 12V transformer in color-matched case
• Miniature C-clamp included
• 3' power cable and choice of Edison, UK or EU plug

Track-mount features

• ETL-Listed and compatible with EUTRAC-brand track
• Factory-installed, integral 12V transformer in color-matched (black or white) adapter
