Add Stations in the Design view

Stations can be added to the Design view by simply dragging and dropping a station from the station library. Add a station to your space by dragging and dropping the station from the station library into the Plan workspace. Stations are displayed in the Station Library by Manufacturer, and in ETC's case by product line ( ETC Paradigm or ETC Heritage).

ETC Paradigm Stations

Paradigm Inspire Stations, ETC Paradigm Touchscreen stations, Virtual Touchscreen, wireless and docking station accessories, Occupancy and Photo Sensors, and the Echo Expansion Bridge are located in the station library under the manufacturer "ETC Paradigm".

Drag and drop an ETC Paradigm station from the library into the Design view, Plan workspace as you would any station from the library. As the station is dropped into the workspace, the Property Editor populates with properties that are specific to the object type.

Reference the following sections:

• Station Properties
• Button and Slider Properties
• Occupancy Sensor Properties
• Photo Sensor Properties
• Echo Expansion Bridge Properties
• Paradigm Mobile Station Properties

For added convenience you can cut, copy, paste, delete and duplicate a station from the Design view.

Paradigm Sensors

Reference the following section:

• Add ETC Paradigm Sensors

Paradigm Touchscreens and Wireless Accessories

Reference the following sections:

• Touchscreen Stations
• Configuring Virtual Touchscreen

Echo Expansion Bridge

Reference the following sections:

• Echo Expansion Bridge and Echo System Capacities
• Configuring the Echo Expansion Bridge
• Retrieve Echo Configuration
• Upload Echo Configuration
• Echo Expansion Bridge Properties

Paradigm Mobile Button Station

Reference the following sections:

• Paradigm Mobile Button Station Application Overview
• Paradigm Mobile Station Properties

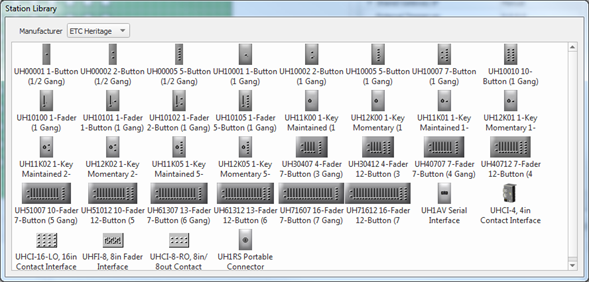

ETC Heritage Stations

ETC Heritage stations are located in the selected Manufacturer "ETC Heritage".

Drag and drop a station into the Design view Plan workspace. As the station is dropped into the workspace, the Property Editor populates with properties that are specific to the object type.

Reference the following section:

• Station Properties

For added convenience you can cut, copy, paste, delete and duplicate a station from the Design view.
